HD 65653
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
hd 65653
Color:
Gold
Material:
Alloy
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: light gold yellow bronze
- Lock handle material: zinc alloy
- Lock panel material: zinc alloy
- Lock body: oblique tongue silencer design
- Suitable for door thickness: 38-52mm
- Suitable range: all kinds of wooden door fans
- Features: low noise, light and flexible to open
Installation steps:
- Make sure that the inclined tongue slope is in the same direction as the closing direction, and make a hole according to the installation paper planning line (as shown in the figure below: A).
- Put the lock body into the hole; pre-tighten the liner screw (as shown below: BC).
- Remove the cover and insert the square core through the door panel into the square hole of the lock body (as shown in the figure below: D).
- Install the inner and outer handle ring components to make the handle rotate smoothly, and tighten the screws (above: E).
- Screw in the outer cover, install the gusset and buckle box, align the lock body, and make the lock tongue fit smoothly (above: FG).

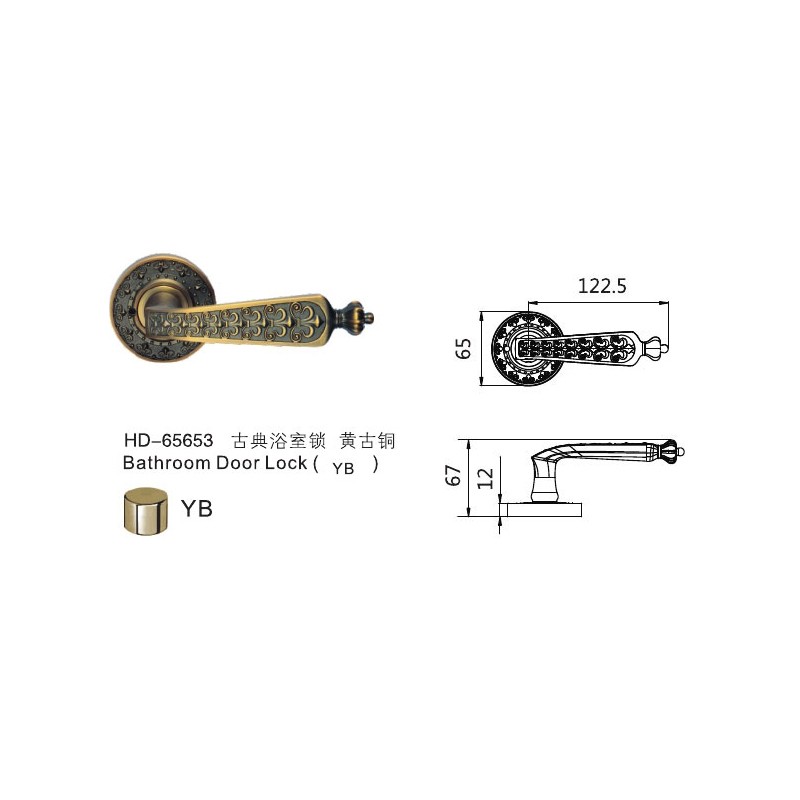

Dimensions
-
+
