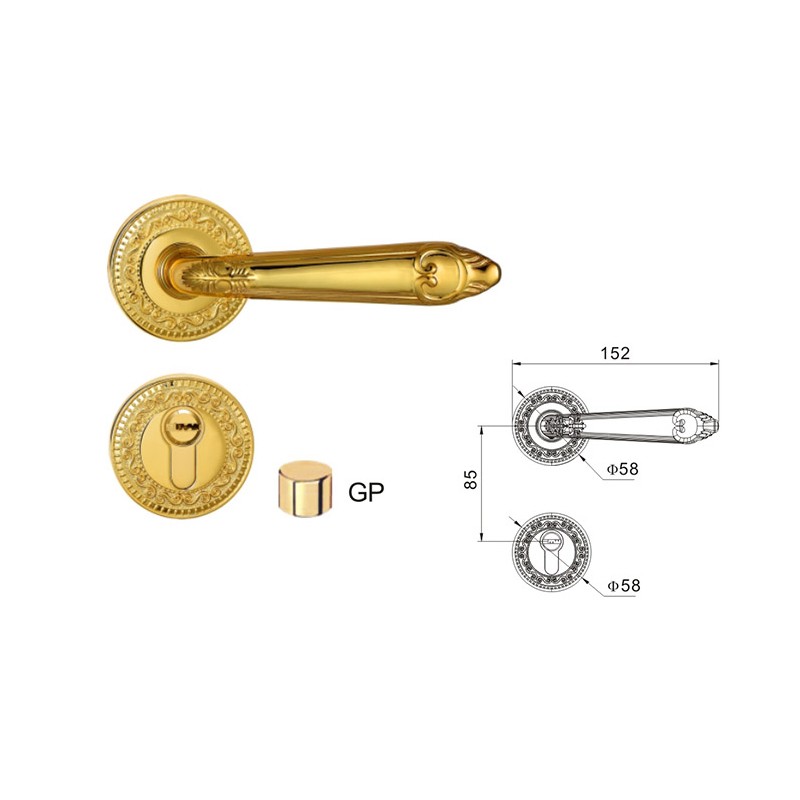

HD 68702 by Hutlon
-
Request a Quote
Kindly fill the form below and our sourcing expert will contact you with the requested details.
HD 68702
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
hd 68702
Color:
Bronze
Material:
Brass
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: light gold / vibrating yellow bronze / vibrating white bronze
- Main material: H59 brass
- Lock body: HD-85-50E lock body
- Lock cylinder: HD-85-76B lock cylinder
- Suitable for door thickness: 38-52mm
- Door opening method: left outer / left inner / right outer / right inner four open way
- Features: low mutual opening rate
Installation steps:
- Make sure that the inclined tongue slope is in the same direction as the closing direction, and make a hole according to the installation paper planning line (as shown in the figure below: A).
- Put the lock body into the hole; pre-tighten the liner screw (as shown below: BC).
- Remove the cover and insert the square core through the door panel into the square hole of the lock body (as shown in the figure below: D).
- Install the inner and outer handle ring components to make the handle rotate smoothly, and tighten the screws (E).
- Screw in the outer cover, install the gusset and buckle box, align the lock body, and make the lock tongue fit smoothly (FG).
Dimensions
-
+
