HE 1205 Sliding Door Hanging Wheel by Hutlon
-
Request a Quote
Kindly fill the form below and our sourcing expert will contact you with the requested details.
HE 1205 Sliding Door Hanging Wheel
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
he 1205
Color:
Nickel
Material:
Alloy
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: brushed nickel
- Main material: polypotassium, zinc alloy
- Maximum load: 45kg
- Scope of application: all kinds of wooden sliding doors
- Main function: moving door leaf
- Features: Needle roller bearings, rolling smooth
Installation Notes:
- Set the length of the aluminum hanging rail according to the door width.
- Install the hanging wheel into the aluminum hanging rail, install the positioning clip, and tighten the hexagonal taper end set screw.
- Install the positioning system in the vertical horizontal position.
- Open the positioning groove at the bottom of the door leaf, press the PVC lower groove into the positioning groove, and install the connecting piece on the top of the door leaf.
- Install the door leaf on the hanging wheel and rotate the connecting screw to make the door leaf horizontal and smooth.

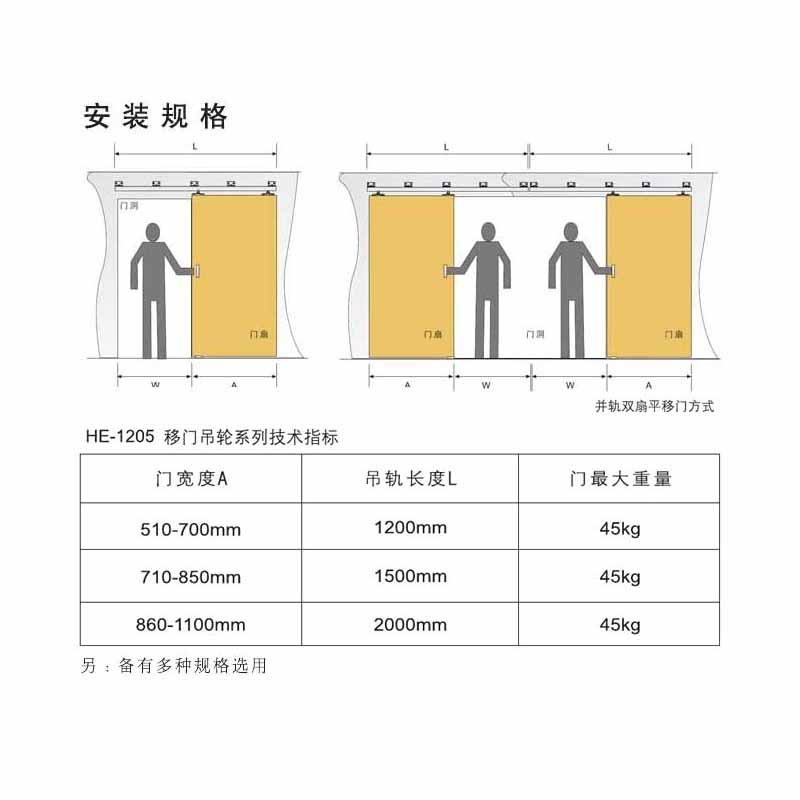

Dimensions
-
+
