Double linkage two-way sliding door fittings
Product Properties
- Surface treatment: gray
- Main material: SUS304 stainless steel, polyoxymethylene
- Scope of application: all kinds of wooden cabinet doors, glass door fans
- Main function: sliding door function
- Features: Two sliding doors can simultaneously open and close (closed door) function
Huitailong sliding door hanging wheel series has unique bearing capacity, low noise and convenient installation. It adopts Japanese high-quality needle roller bearings to ensure the normal operation of the products and make the products more international.

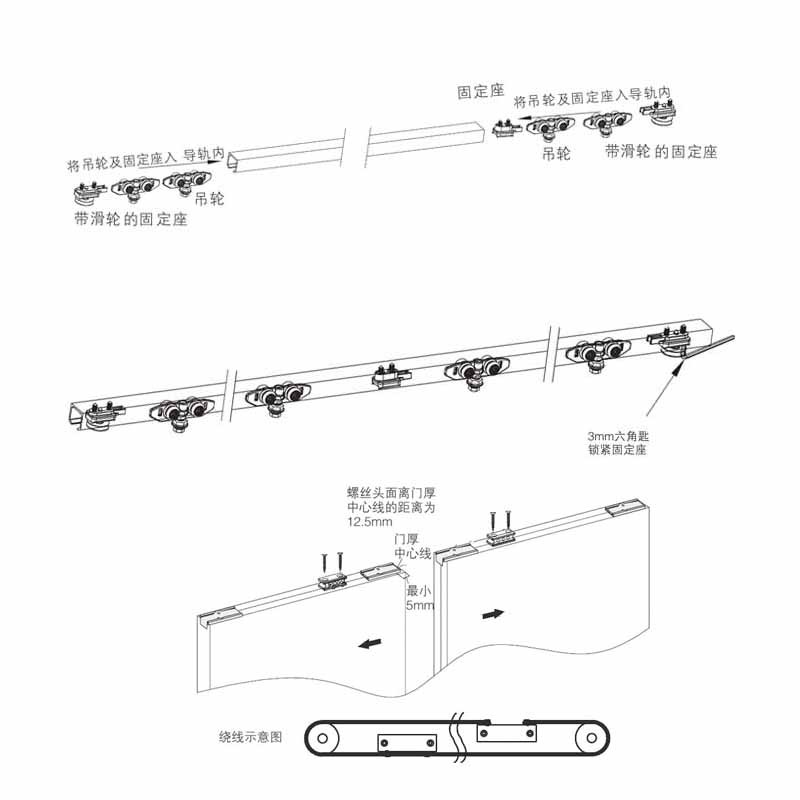

- Place the hanging wheel, the fixed seat and the fixed seat with the flower drop into the guide rail. The hardware of the two doors is the same, including one fixed seat, two hanging wheels and one fixed seat with pulleys.
-
Adjust the fixing bracket to the appropriate position, then adjust the set screw with a hex key to lock the fixing seat. The fixing seat with the pulley needs to be removed first, and then locked with the Allen key.
-
Install the hanging wheel base and the clamping seat, and keep the center of the hanging wheel base on the center line of the door thickness. The installation position of the clamping seat is as shown.
-
Note: When installing this double-linking sliding door fitting, the intermediate fixing seat can be used with only one.
