HE 1208 Sliding Door Hanging Wheel by Hutlon

  • Request a Quote

    Kindly fill the form below and our sourcing expert will contact you with the requested details.

    HE 1208 Sliding Door Hanging Wheel  - Hutlon

    HE 1208 Sliding Door Hanging Wheel

    by Hutlon

    Note: All fields are mandatory

  • Call: +91 6353 673 040
  • WhatsApp Us
  • Country: China

Details

- +
Model Number:
he 1208
Color:
Silver, white
Material:
Alloy, Aluminium, Plastic
Brand:
Hutlon
Country:
China

Description

- +

Product Properties

  • Surface treatment: galvanized, silver white
  • Main material: polyoxymethylene, zinc alloy, aluminum alloy
  • Maximum load: 140kg
  • Main function: moving door leaf
  • Features: quiet design, high wear resistance, low loss

Huitailong sliding door hanging wheel series has unique bearing capacity, low noise and convenient installation. It adopts Japanese high-quality needle roller bearings to ensure the normal operation of the products and make the products more international.

Installation Notes:

  • Set the length of the aluminum hanging rail according to the door width.
  • Introduce the hanging wheel into the aluminum hanging rail and install the parking clamp. If the wall mounting method is selected, install the wall-mounted corner code and tighten the fixing screws.
  • Install the hanging rail into the wall and correct it with a level ruler.
  • Install the positioning system in the vertical horizontal position.
  • Open the positioning slot at the bottom of the door leaf and install the quick release tab on the top of the door leaf.
  • Install the door leaf on the hanging wheel and rotate the adjusting screw to make the door leaf level and smooth.
  • It is required to install the sliding connecting piece as close as possible to the door leaf for easy disassembly and assembly.

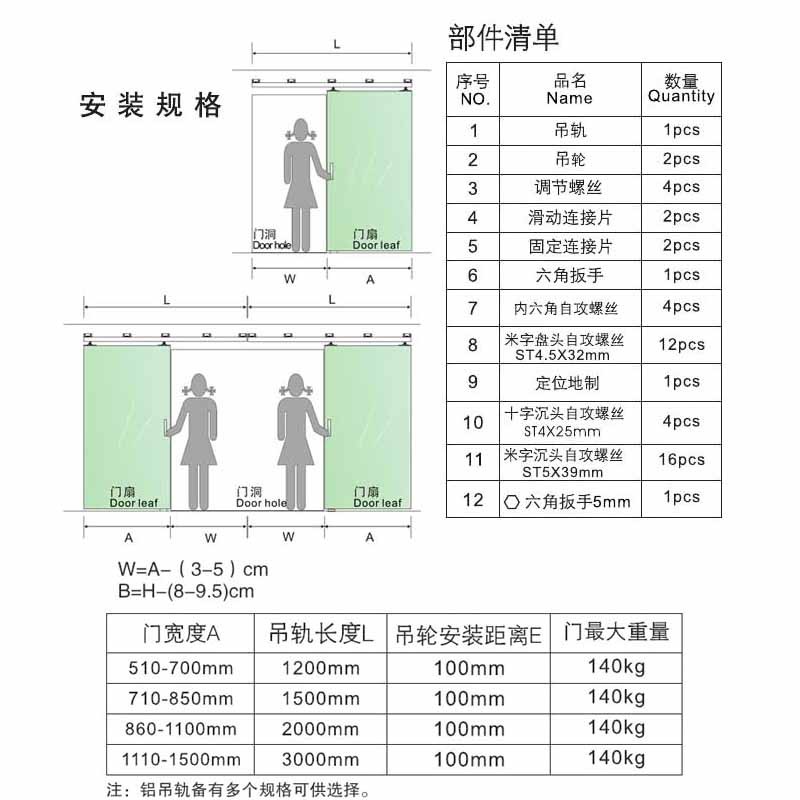

Dimensions

- +
HE 1208 Sliding Door Hanging Wheel  - Hutlon
