HE 1304 Sliding Door Hanging Wheel
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
he 1304
Color:
white
Material:
Alloy, Aluminium, Plastic
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: milky white, silver white
- Main material: aluminum alloy, polyoxymethylene
- Maximum door thickness: 10-12mm
- Maximum load: 80kg
- Scope of application: tempered glass door
- Main function: moving glass door leaf
- Features: Japanese needle roller bearings, silent
Installation Notes:
- Set the aluminum hanging rail length according to the door width.
- Introduce the hanging wheel into the aluminum hanging rail and install the retaining clip and tighten the hexagon socket head cap screws.
- Install the positioning system in the vertical horizontal position.
- Select the installation position of the glass clamp according to the width of the door, attach the glass clamp with the hanging plate to the glass door, and tighten the hexagonal taper end set screw;
- Screw the hanging wire into the hanging wheel, insert the glass clamp bayonet, adjust the position of the hanging plate on the glass clamp, and then lock the hexagonal screw;
- Adjust the hanging wire to make the door level, the hanging wire adjustment range is up to 5mm, tighten the M8K female, and insert the aluminum plug into the glass clamp bayonet.

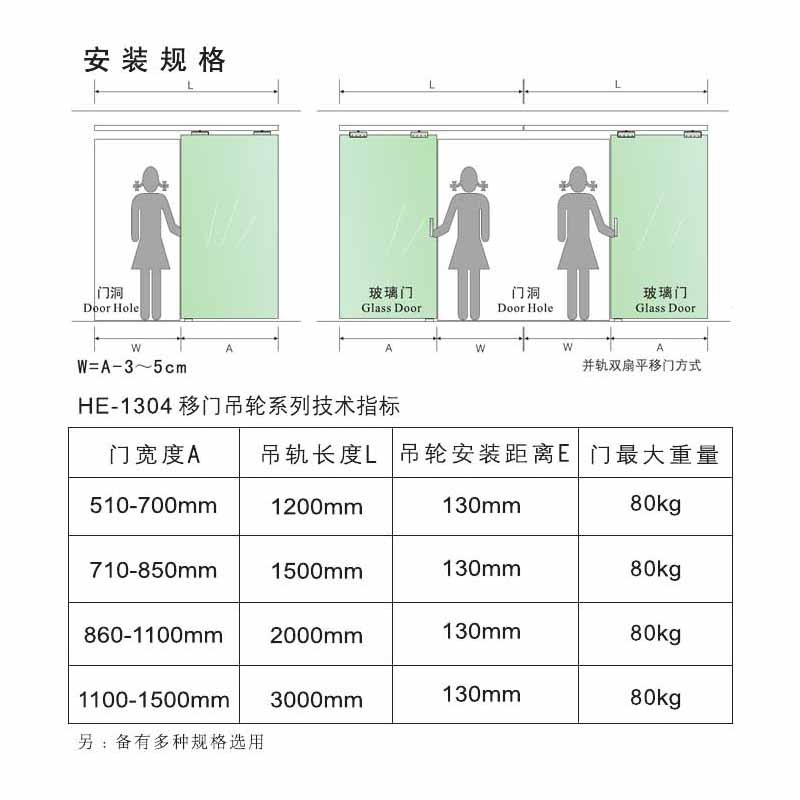

Dimensions
-
+
