HE 1305 Sliding Door Hanging Wheel
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
he 1305
Color:
chrome, white
Material:
Brass, Plastic
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: milky white, chrome
- Main material: brass, polyoxymethylene
- Maximum door thickness: 10-12mm
- Maximum load: 60kg
- Scope of application: tempered glass door
- Main function: moving glass door leaf
- Features: easy to install
Installation Notes:
- Set the aluminum hanging rail length according to the door width.
- Introduce the hanging wheel into the aluminum hanging rail and install the retaining clip and tighten the hexagon socket head cap screws.
- Install the positioning system in the vertical horizontal position.
- Screw the hanging wire into the hanging wheel to adjust the glass sliding door clamp to the suitable position of the lower end of the guide rail with a vertical distance of about 8-12mm. The height of the hanging wire at both ends is about the same;
- The hanging wire is placed in the glass holder, and is placed in the glass hole drilling position, and the hexagonal flower-shaped countersunk head screw is screwed.

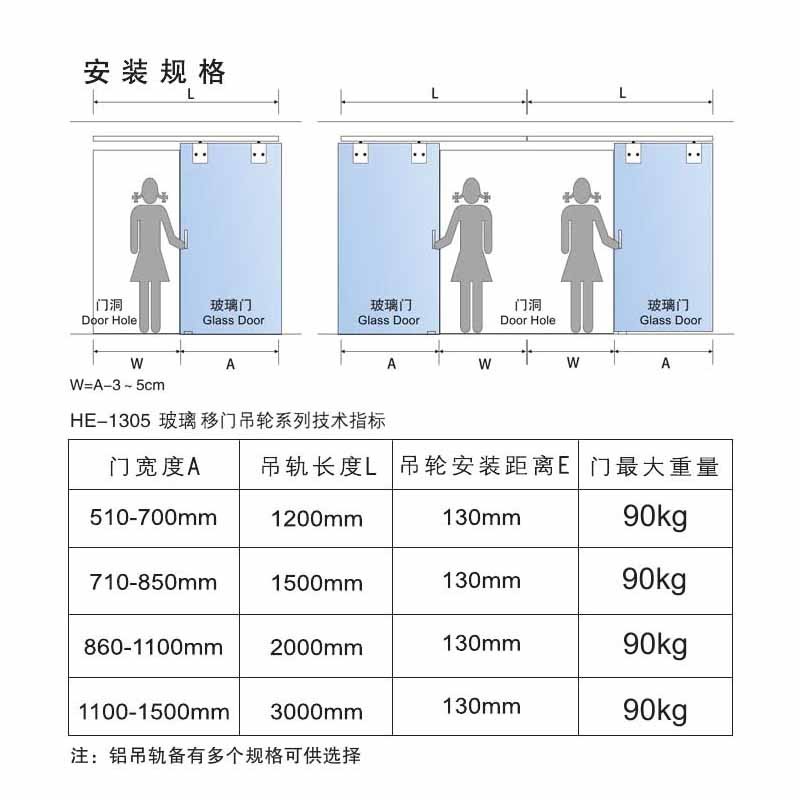

Dimensions
-
+
