HE 1401 Sliding Door Hanging Wheel
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
he 1401
Color:
Silver, white
Material:
Alloy, Aluminium, Nylon, Plastic
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: silver white
- Main material: aluminum alloy, polyoxymethylene, nylon
- Maximum door thickness: ≥40mm
- Maximum load: 80kg
- Scope of application: wooden sliding door
- Main function: buffer function
- Features: Japanese needle roller bearings, silent
Installation Notes:
- Set the length of the aluminum hanging rail according to the door width.
- Introduce the hanging wheel into the aluminum hanging rail and install the parking clamp. If the wall mounting method is selected, install the wall-mounted corner code and tighten the fixing screws.
- Install the hanging rail into the wall and correct it with a level ruler.
- Install the positioning system in the vertical horizontal position.
- Open the positioning slot at the bottom of the door leaf and install the quick release tab on the top of the door leaf.
- Install the door leaf on the hanging wheel and rotate the adjusting screw to make the door leaf level and smooth.
- It is required to install the sliding connecting piece as close as possible to the door leaf for easy disassembly and assembly.

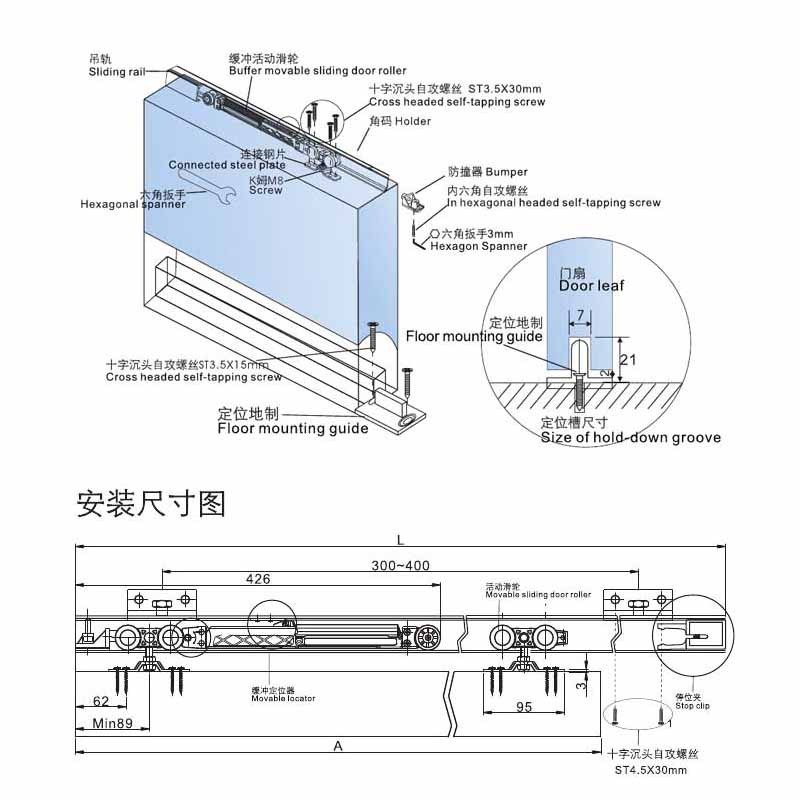

Dimensions
-
+
