HE 1451 Sliding Door Hanging Wheel by Hutlon
-
Request a Quote
Kindly fill the form below and our sourcing expert will contact you with the requested details.
HE 1451 Sliding Door Hanging Wheel
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
he 1451
Color:
chrome, white
Material:
Brass, Plastic
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: milky white, chrome
- Main material: brass, polyoxymethylene
- Maximum door thickness: 10-12mm
- Maximum load: 90kg
- Scope of application: tempered glass door
- Main function: moving glass door leaf
- Features: easy to install
Installation Notes:
- Setting the length of the aluminum hanging rail according to the door width;
- Install the hanging wheel into the aluminum hanging rail and install the buffer positioner, bumper and stop clamp;
- Install the hanging rail into the wall;
- Install the adjustment positioning system in the vertical horizontal position.
- Screw the hanging wire into the pulley, adjust the position of the glass sliding door clamp to the lower end of the guide rail to a vertical distance of about 10-12mm, and the height of the hanging wire at both ends is about the same;
- The hanging wire is placed in the glass clip, and is placed in the glass opening drilling position, and the hexagonal flower-shaped countersunk screw is tightened and the decorative button is covered;
- Adjust the bumper, buffer positioner, and stop clamp to the proper position.

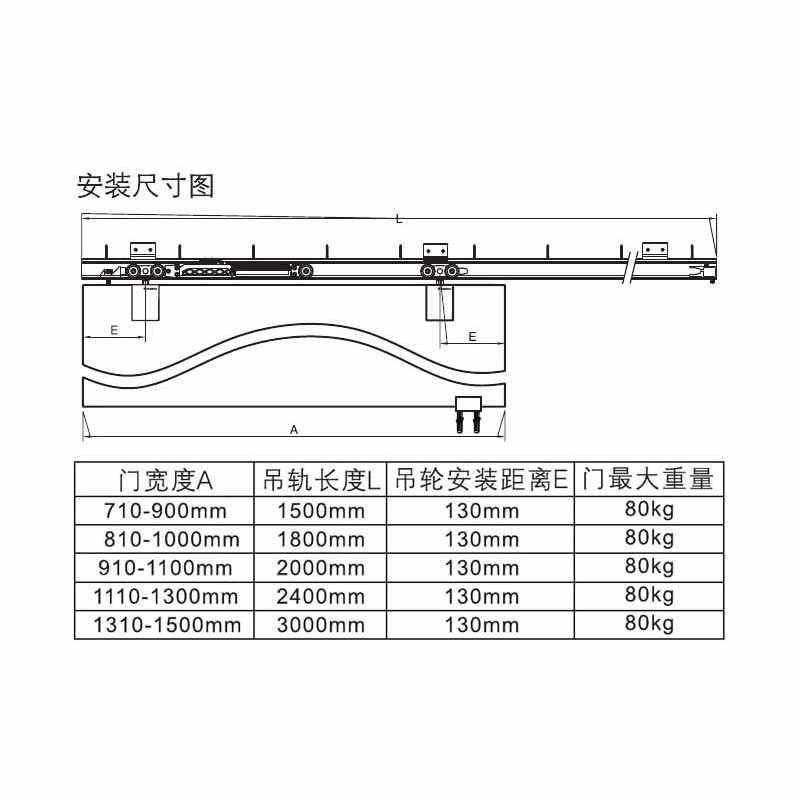

Dimensions
-
+
