Malatesta Gazebo by UNOSIDER

The perfect fusion of style, elegance and majesty are summarized in the shapes of forged iron. Uniqueness and excellence that also emerge from the technical characteristics: weight of the structure, gutter and sheet fixing systems and gradually up to the attention to the smallest details. This structure is the foundation on which to work for large Unosider-style roofing projects, which can be implemented with the addition of lighting, heating and other options on request.

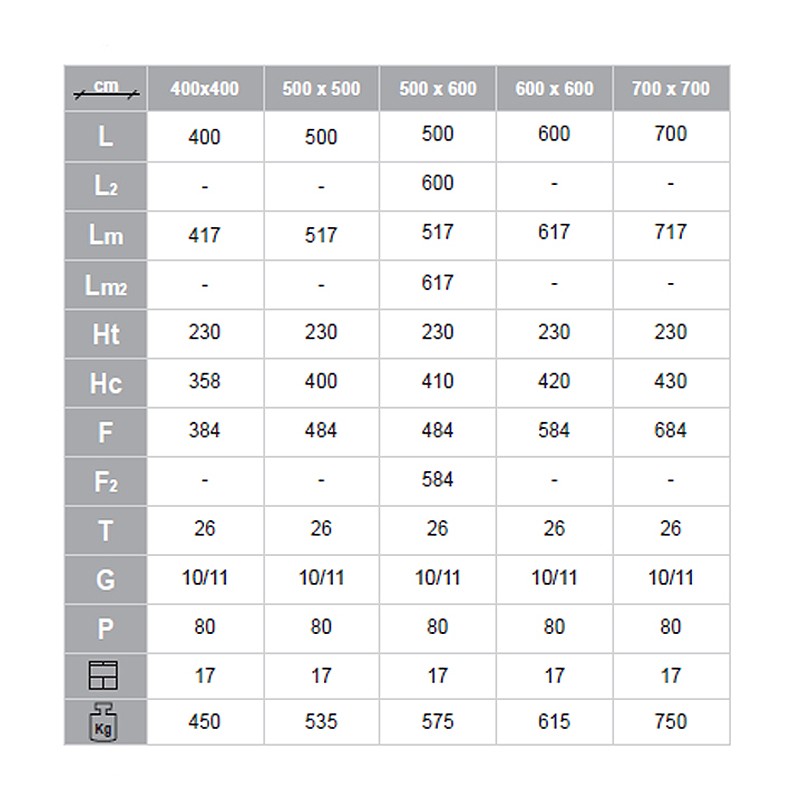

Technical information

• pillar section 80 x 80 x 2 mm
• beam section 260 x 40 mm thickness 2 mm
• sloping section 40 x 40 x 2 mm
• maximum size 700 x 700 cm
• possibility of custom-made realization
• steel profiles worked with hot galvanizing treatment
• epoxy powder coating based on polyester resin, resistant to UV rays
• possibility of customizing the painting (with reference to the RAL color chart) subject to approval by the technical office
• runoff and channeling of rainwater guaranteed by the presence of perimeter gutters and a channeling inside the pillars
• standard cover in PVC PRECONTRAINT602, heat-sealed, fireproof class 2 / UNI9177, in champagne or white color

* the standard model 700 x 700 cm differs in the dimensions of the pillars (100 x 100 x 3 mm) of the slopes (50 x 100 x 3 mm) and of the beams (260 x 40 mm thickness 3 mm)

Accessories

• valance in PVC fabric
• side curtains in Progar acrylic fabric or PVC with zip closure and fixing profiles to the columns
• PVC side curtains with zip closure and fixing profiles to the columns, with customized PVC Cristal windows
• Progar acrylic ornamental curtains for structure decoration
• suspension chandelier, in wrought iron (in the colors of the structure) or in crystal
• dimmable LED strips integrated in the roofs, equipped with remote control
• stretch or pleated false ceiling in Drap acrylic fabric
• Ambient light heaters with ceramic screen for heating outdoor spaces

• Can be made to measure
