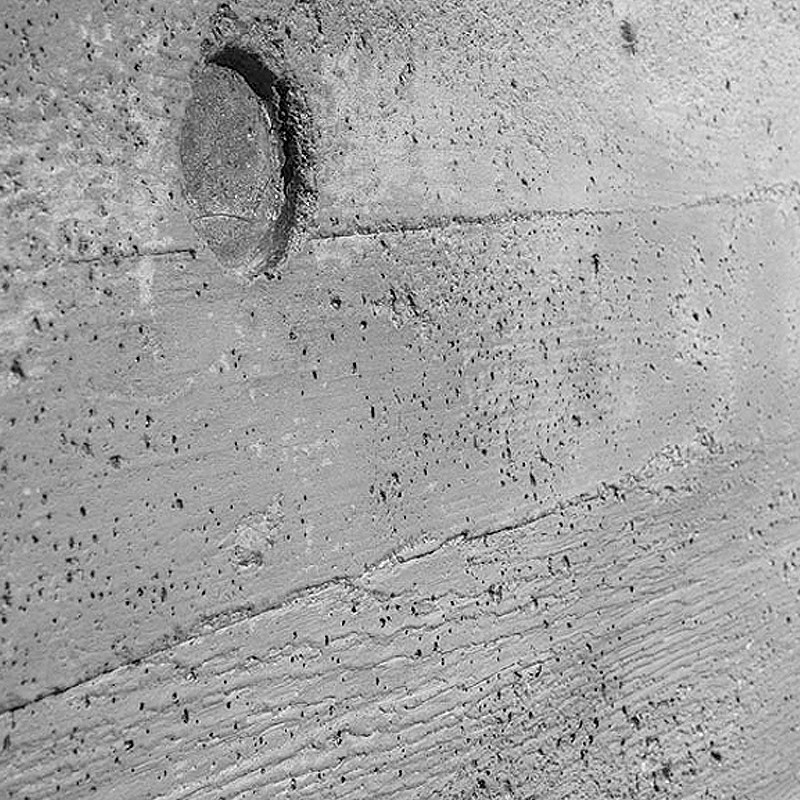

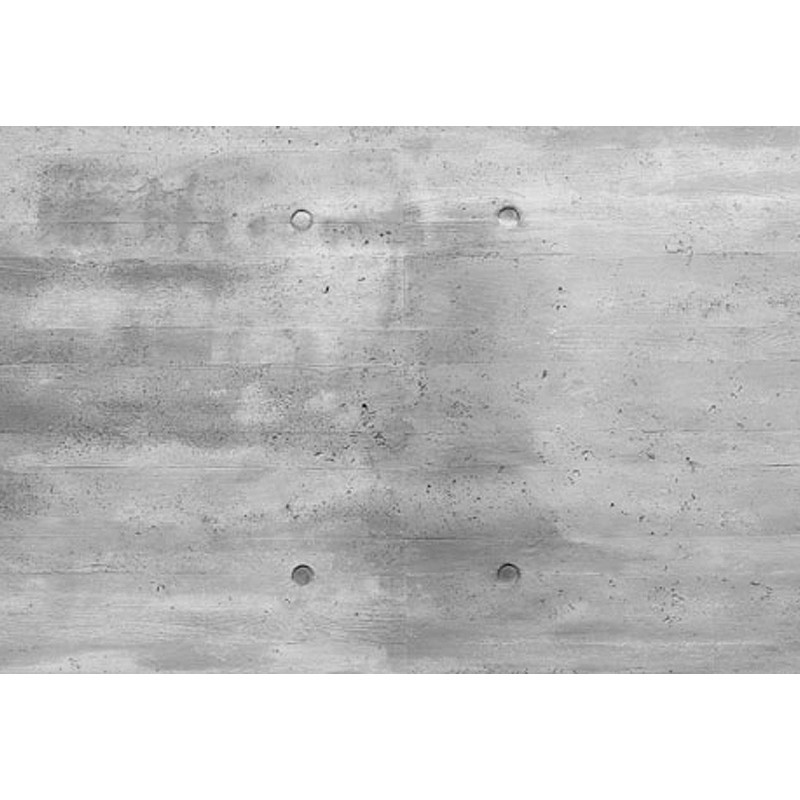

View allThe new member of Concrete, Artstone's most admired, H-Plate presented as the new version of the concrete formwork system. H-Plate, which is designed by blending the surface texture with steel mold, offers one of the most natural concrete appearance alternatives with the existence of connection screw traces on its original texture.
-
Panel Thickness: ~ 12 - 14 mm
-
Pattern Depth: ~ 14 - 16 mm
-
Weight: ~ 8 - 9 kg/m²
-
Class of Non-flammability: According to "Euroclass ISO EN 13501-1 EU" norms, "Class A2 Non-flammable & Non-combustible"
-
Density: "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms
-
Temperature Resistance Limit: "No deterioration at 800 °C" according to "ASTM E1069" norms
-
Barcol Hardness: "52" according to "TS EN 59" norms
-
Impact resistance -Ball Method: "No crackages" according to "DIN ISO 4586 T12" norms
-
Impact Resistance - with Charpy Device: "30 kj/m2" according to "TS EN ISO 179-1" norms
-
Sound Insulation: "40 dB" according to "TS EN ISO 140-3" norms
-
Frost Resistance: "No deterioration" according to "ASTM C 666" norms
