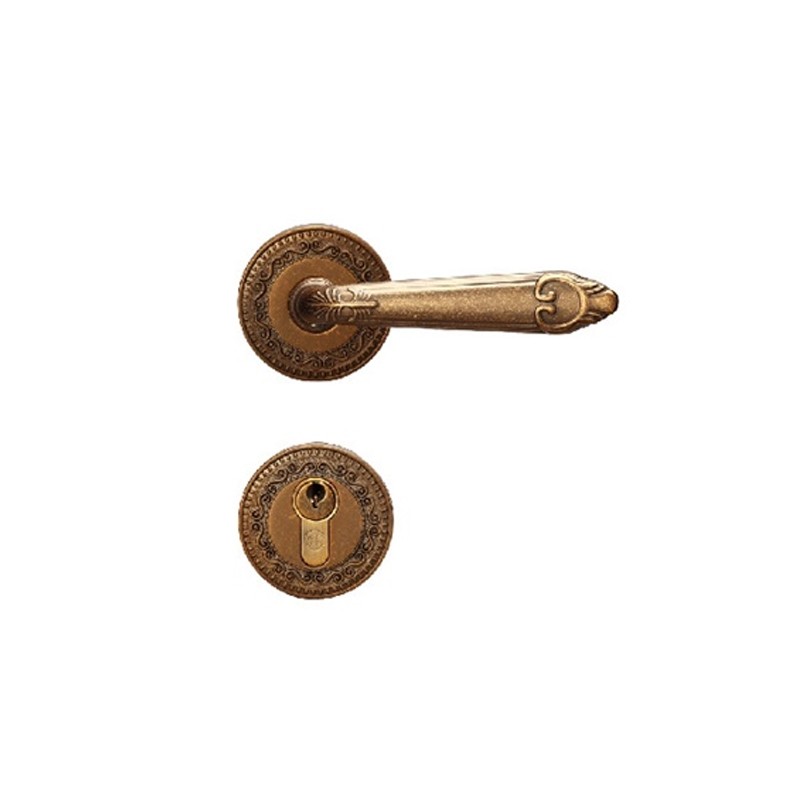

Product Properties

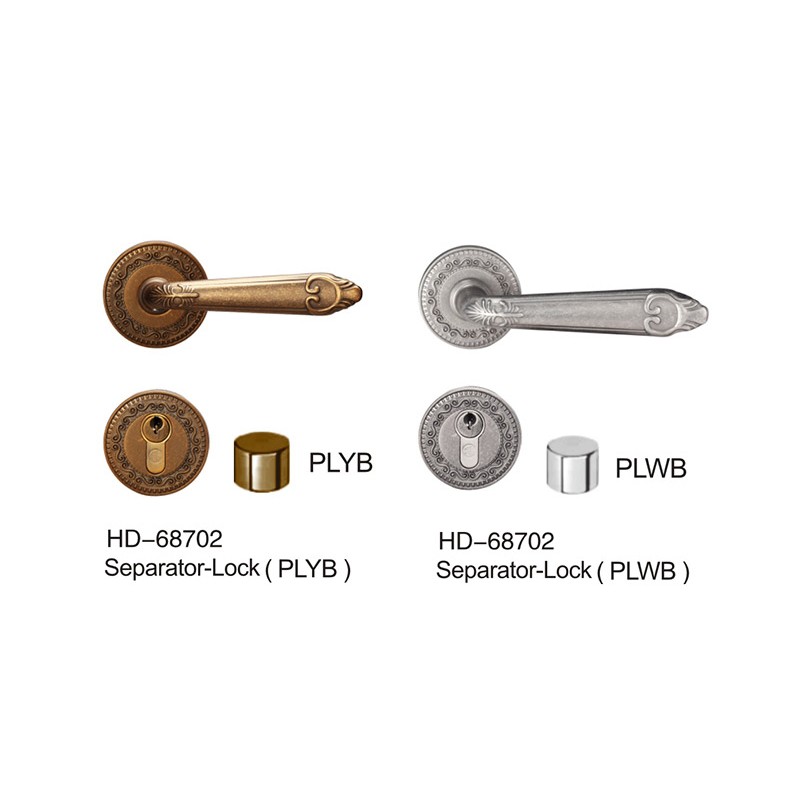

• Surface treatment: light gold / vibrating yellow bronze / vibrating white bronze
• Main material: H59 brass
• Lock body: HD-85-50E lock body
• Lock cylinder: HD-85-76B lock cylinder
• Suitable for door thickness: 38-52mm
• Door opening method: left outer / left inner / right outer / right inner four open way
• Features: low mutual opening rate

Installation steps:

• Make sure that the inclined tongue slope is in the same direction as the closing direction, and make a hole according to the installation paper planning line (as shown in the figure below: A).
• Put the lock body into the hole; pre-tighten the liner screw (as shown below: BC).
• Remove the cover and insert the square core through the door panel into the square hole of the lock body (as shown in the figure below: D).
• Install the inner and outer handle ring components to make the handle rotate smoothly, and tighten the screws (E).
• Screw in the outer cover, install the gusset and buckle box, align the lock body, and make the lock tongue fit smoothly (FG).
