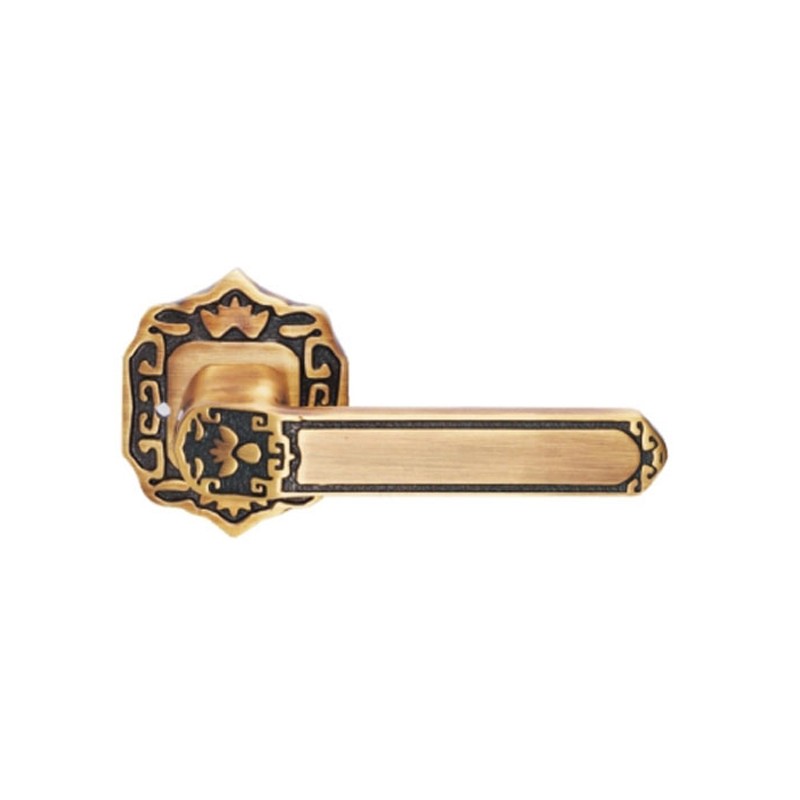

Product Properties

• Surface treatment: coffee bronze
• Lock handle material: copper
• Lock panel material: copper
• Lock body: oblique tongue silencer design
• Suitable for door thickness: 38-48mm
• Suitable range: all kinds of wooden door fans
• Features: low noise, light and flexible to open

Installation steps:

• Make sure that the inclined tongue slope is in the same direction as the closing direction, and make a hole according to the installation paper planning line (as shown in the figure below: A).
• Put the lock body into the hole; pre-tighten the liner screw (as shown below: BC).
• Remove the cover and insert the square core through the door panel into the square hole of the lock body (as shown in the figure below: D).
• Install the inner and outer handle ring components to make the handle rotate smoothly, and tighten the screws (above: E).
• Screw in the outer cover, install the gusset and buckle box, align the lock body, and make the lock tongue fit smoothly (above: FG).
