HE 1209 Sliding Door Hanging Wheel by Hutlon
-
Request a Quote
Kindly fill the form below and our sourcing expert will contact you with the requested details.
HE 1209 Sliding Door Hanging Wheel
by Hutlon
- Call: +91 6353 673 040
- WhatsApp Us
- Country: China
More products from Hutlon
Details
Description
Dimensions
Details
-
+
Model Number:
he 1209
Color:
Black, Nickel
Material:
Alloy, Aluminium, Nylon, Steel
Brand:
Hutlon
Country:
China
Description
-
+
Product Properties
- Surface treatment: nickel plating
- Main material: cold rolled steel, aluminum alloy, nylon
- Scope of application: all kinds of wooden sliding doors
- Main function: sliding door function
- Features: Two sliding doors can simultaneously open and close (closed door) function
Installation Notes:
- Set the length of the aluminum hanging rail according to the door width.
- Introduce the hanging wheel into the aluminum hanging rail and install the parking clamp. If the wall mounting method is selected, install the wall-mounted corner code and tighten the fixing screws.
- Install the hanging rail into the wall and correct it with a level ruler.
- Install the positioning system in the vertical horizontal position.
- The bottom of the door leaf opens the positioning slot and slots the top of the door leaf.
- Install the door leaf on the hanging wheel and rotate the adjusting screw to make the door leaf level and smooth.
- The thickness of the sliding door is at least 25mm.

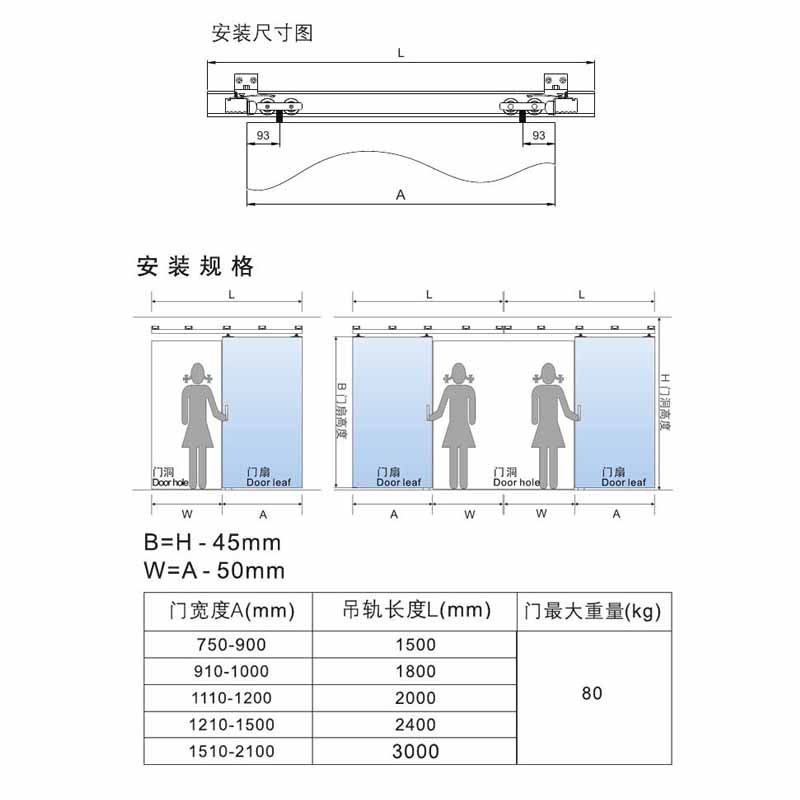

Dimensions
-
+
